Stain Woven Fireproof Fiberglass Fabric 3786 Thermal Insulation With 1.2mm Thickness

Changshu Jiangnan Glass Fiber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Stain Woven Fireproof Fiberglass Fabric 3786 Thermal Insulation With 1.2mm Thickness

Brand Name : Jiangnan

Model Number : 3786

Certification : ISO9001:2015

Place of Origin : CHINA

MOQ : 500 Meters

Payment Terms : L/C, D/A, D/P, T/T, wESTERN uNION

Supply Ability : 10000 Square Meters per day

Delivery Time : 14 Days after the Payment

Packaging Details : Carton Box,Woven Bag

Price : Negotiable

Product Name : Insustry Fiberglass Cloths

Weave : 12H Satin

Weight : 38.8 OZ/SY

Thickness : 0.047 Inch

Count : 46*33 ENDS/IN

Breaking Strength : 888*777 LB/LN

Application : Wall/Roof Covering Cloth

Processing Service : Decoiling

Contact Now

Stain Woven Fireproof Fiberglass Fabric 3786 Thermal Insulation With 1.2mm Thickness

1. Product Description:

Compared with the ordinary 3786, this light weight 3786 is woven with special glass fiber yarn, which can give customers more choices. Fiberglass Cloth is made of high strength E glass fiberglass yarn, with plain or twill weaving style. It can be compatible with polyester, epoxy and vinylester resins, and is widely used in aircraft and spaceflight industry, ship industry, chemical industry, medical industry, military industry and sports goods, etc. It can be used to produce golf pole, surfboard, sailboard, boat hull, FRP tank, swimming pools, car bodies, FRP pipe as well as other FRP products.

2. Table 1: 3786 Product Description

3786 low Weight Woven Fiberglass Cloth
Item Model 3786 Fiberglass Fabric
Description Low Weight Woven Fiberglass Cloth
Weave Structure 12H Satin Weave
Weight 1000gsm
Thickness 1.2mm
Yarn Type Warp EC9 68 1*2
Weft EC9 68 1*2
Thread Count Warp 18±1 ends/cm
Weft 12.6±1 picks/cm
Break Strength Warp 9800 N/5cm
Weft 4800 N/5cm
LOI < 0.4%
Working Temperature ≤550℃

3. Table 2:Safety Data Sheet

E-glass fiberglass yarn is a kind of glass with a very low alkaline content. Its composition that is Oxides is within the following percentages, our products are harmless to human body.

SiO2 50.8-54%
Alkaline Oxides (Na2O,K2O) <1%
CaO 21-24%
MgO <2%
B2O3 6-10%
AhO3 13-15%
TiO2 <0.8%
Fe2O3 <0.5%
F2 <1%

4. Product Features:

Warp and weft roving aligned in a parallel and flat manner, resulting in uniform tension.

Densely aligned fibers, resulting in high dimensional stability and making handing easy.

Good mold ability, fast and complete wet in resins, resulting in high productivity.

Good transparency and high strength of composite products.

5. Application:

Mainly used for the copper substrate, insulation board, silicon rubber insulating heat conduction cloth, insulation cloth, fire prevention cloth, etc

6. High quality

The fiberglass yarns are supplied by our company, it has 10% more strength, much softer and more beautiful surface than normal product. Our glass fiber cloth quality is much better than other suppliers in China and faster production rate.

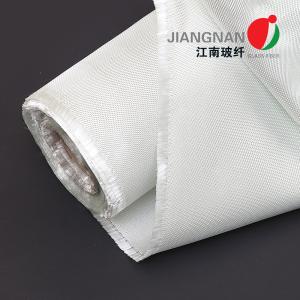

7. More Detail Images
Stain Woven Fireproof Fiberglass Fabric 3786 Thermal Insulation With 1.2mm ThicknessStain Woven Fireproof Fiberglass Fabric 3786 Thermal Insulation With 1.2mm Thickness

8. Related Products (Fireproof Fabric Series)
No Type Width (mm) Weight(g/m2) Thickness (mm) Weave
1 7781 107 127 157 207 254 300±8 0.22 8HS
2 7581 107 127 157 207 254 300±8 0.23 8HS
3 3732 107 127 157 207 254 425±8 0.4 1/3 Twill
4 332 107 127 157 207 254 427±8 0.36 4HS
5 666 107 127 157 207 254 640±20 0.6 8HS
6 3784 107 127 157 207 254 870±20 0.8 8HS
7 3786 107 127 157 207 254 1450±20 1.2 12HS
8 3788 107 127 157 207 254 1650±20 1.6 12HS
